The universal seed drill is a planting machine of hydraulically suspended type which is capable of planting by attaching to a tractor by a three-point suspension mechanism.

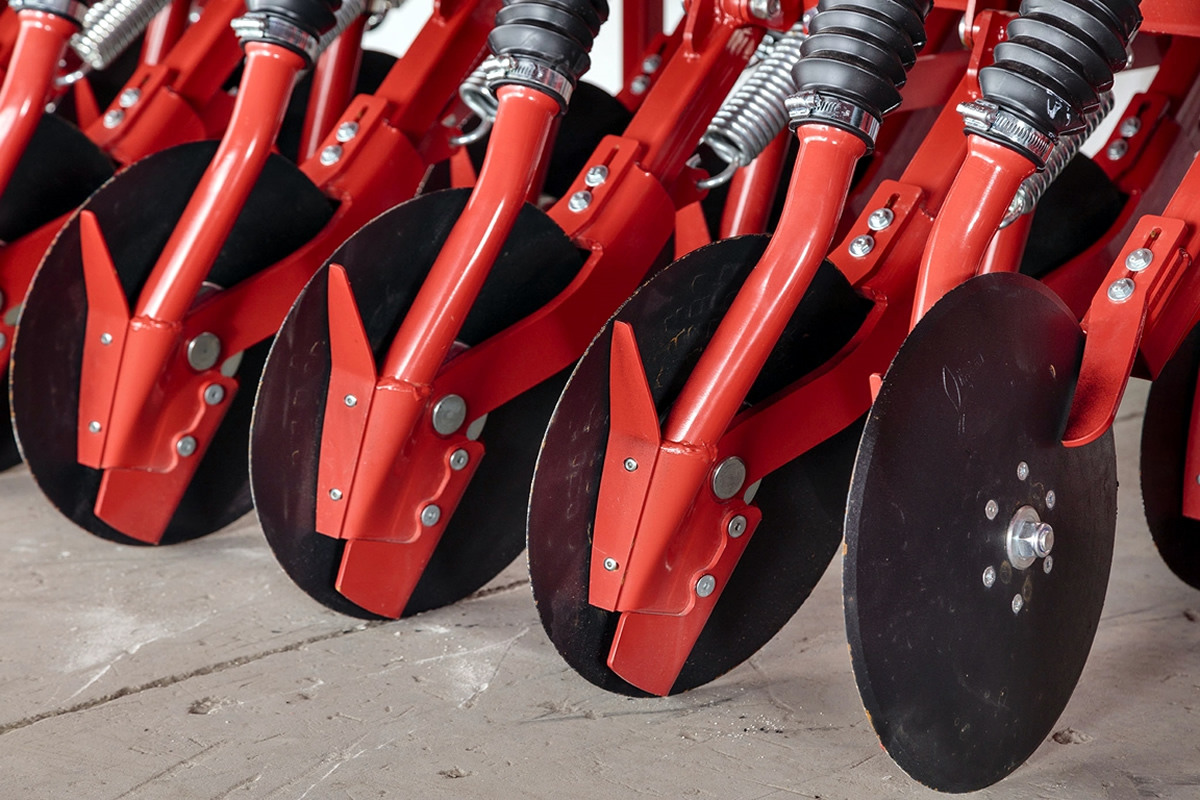

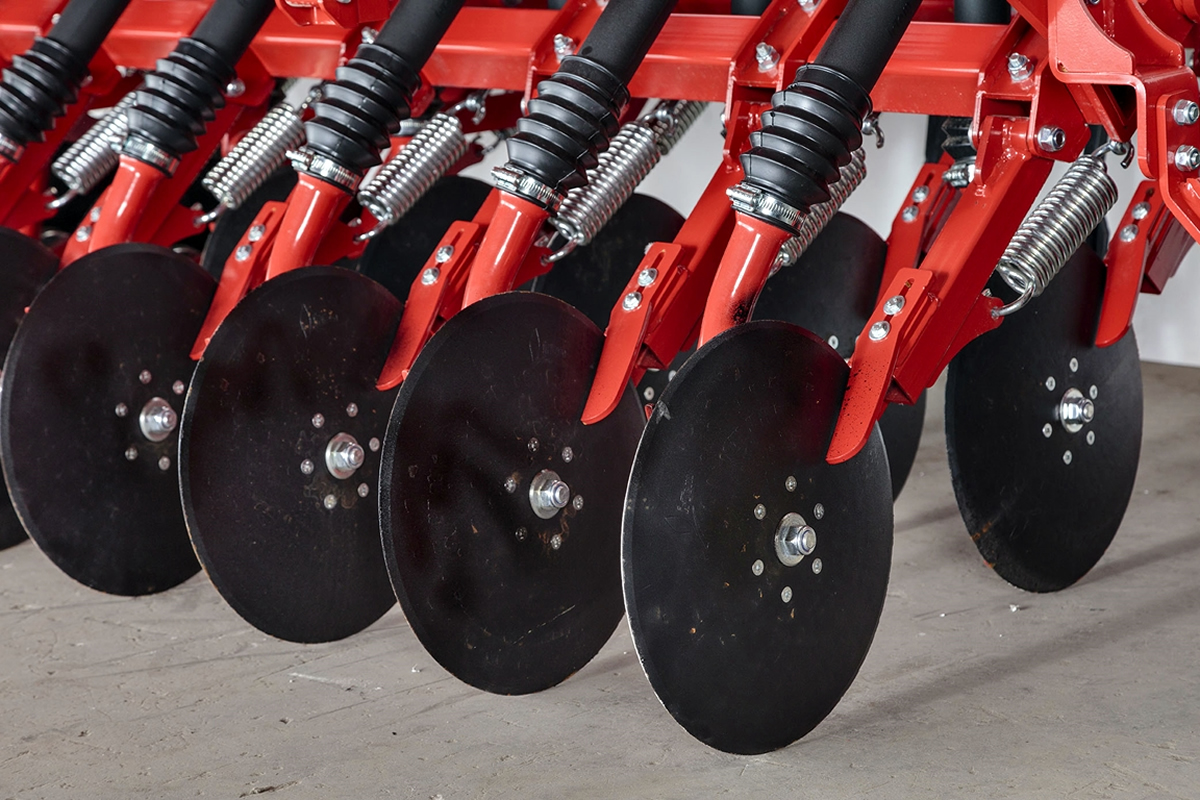

Single discs machines have a seed-directing system as standard. Thus the seed falls to the back of the coulter, into the drill from a very short distance.
The variable-speed transmission and planting seed gears enable the seeds to be spread to the soil evenly and in desired amount. Fertilizer is spread with sheave gears, thanks to the variable-speed transmission on the machine.
The distance between rows is 130 mm in single disc machines.
This type of machines are manufactured with 19, 21, 23, 27, 31 rows and with or without fertilizer equipment
Optionally, the machines can be equipped with indentation systems and decare-meters.
|MODEL||SDS-A 19||SDS-A 21||SDS-A 23||SDS-A 27||SDS-A 31|
|Distance Between Rows (mm)||130||130||130||130||130|
|Working Width (mm)||2470||2730||2990||3510||4030|
|Handling Width (mm)||2785||3035||3285||3830||4156|
|Handling Height (mm)||1600||1600||1600||1600||1600|
|Handling Length (mm)||2480||2480||2480||2480||2480|
|Seed Tank Volume (lt)||330||360||390||480||510|
|Fertiliser Tank Volume (lt)||310||340||370||450||480|
|Tank w/o Fertiliser Vol (lt)||640||700||760||930||1000|
|Operating Speed (km/h)||5-7||5-7||5-7||5-7||5-7|
|Power Requirement (kw)||50-60||60-70||70-80||80-90||90-100|
|Power Requirement (HP)||60+||70+||80+||100+||110+|
